SRIMAHAN | Reverse Forward Rotary Tiller

Reverse Forward Rotary Tiller

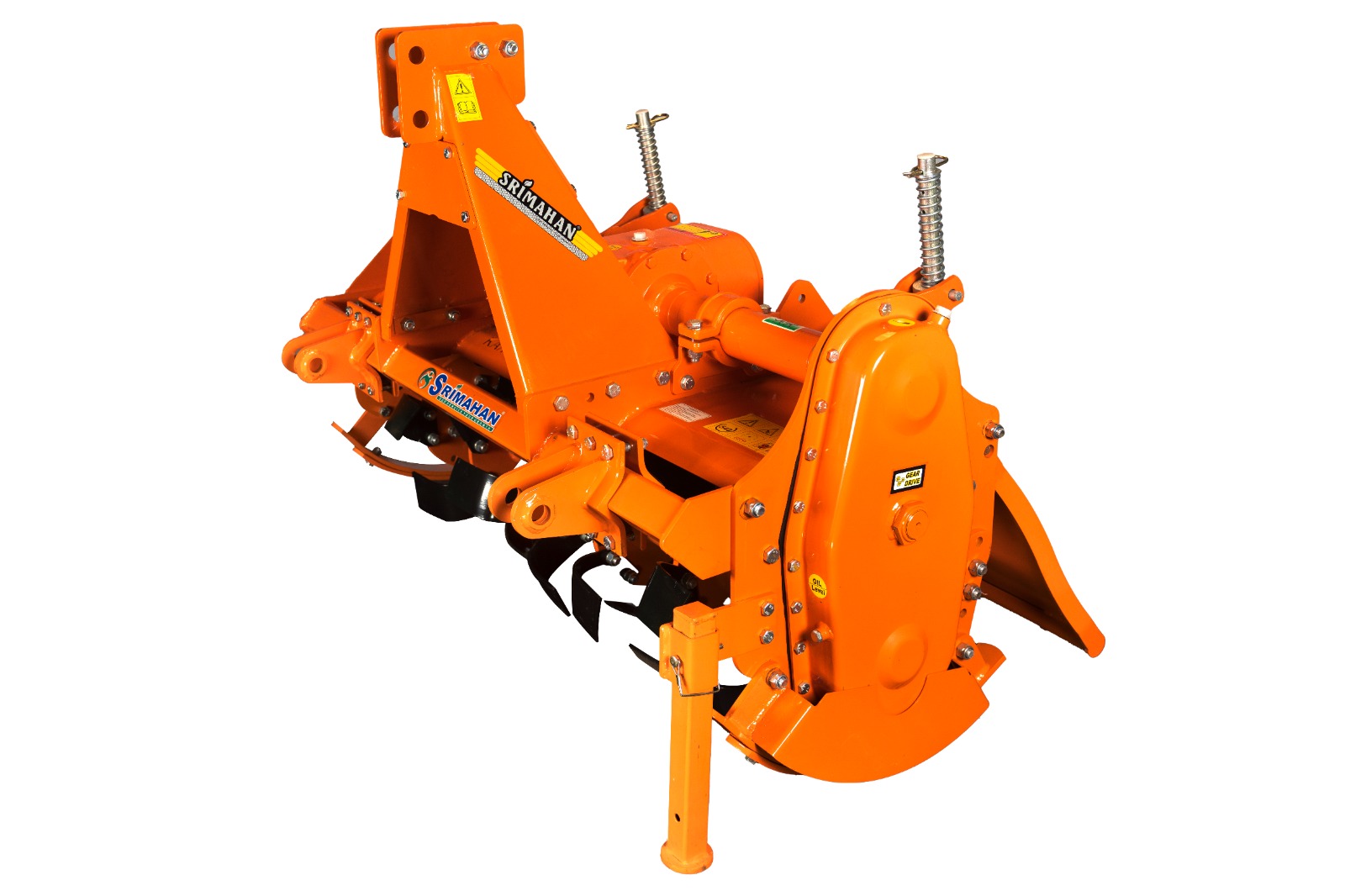

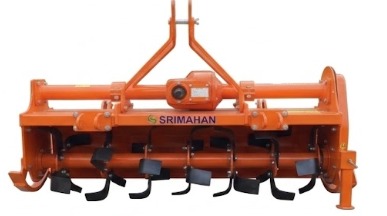

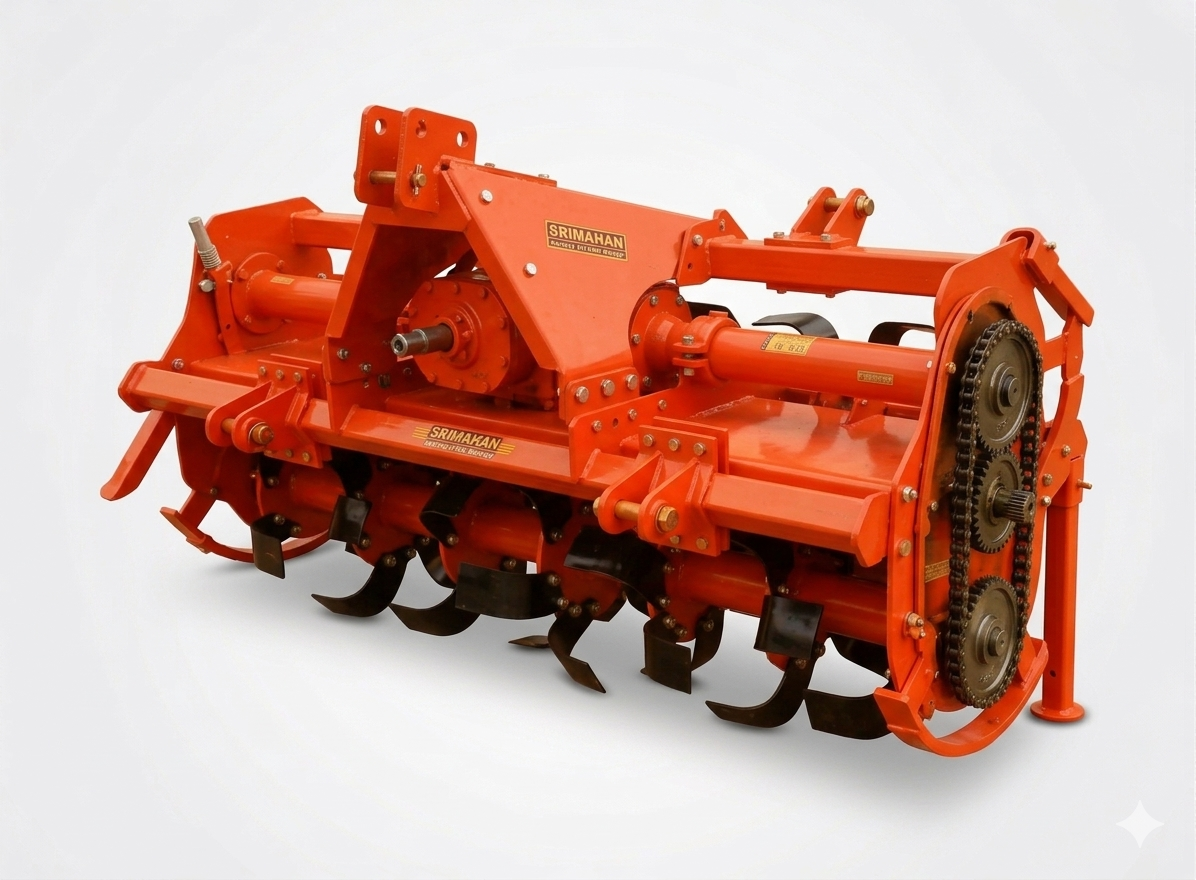

The Reverse Forward Rotary Tiller is a specialized agricultural implement designed for high-efficiency tilling and earthing up in a single operation. Available in SMRF 2.5Ft and SMRF 3Ft models, it is built for compact tractors ranging from 15 HP to 25 HP. This tiller utilizes a chain drive transmission and "J" type blades to provide superior soil infiltration and weed control, particularly in row-to-row plantation settings.

Dual-Action Efficiency: Performs tillage and earthing up with a single operation.

Resource Savings: Saves fuel, time, and labour by approximately 40-50%.

Specialized Application: Ideal for row-to-row plantation (more than 4ft).

Crop Maintenance: Helps effectively in controlling weeds.

Soil Health: Improves the infiltration and seepage of water into the soil

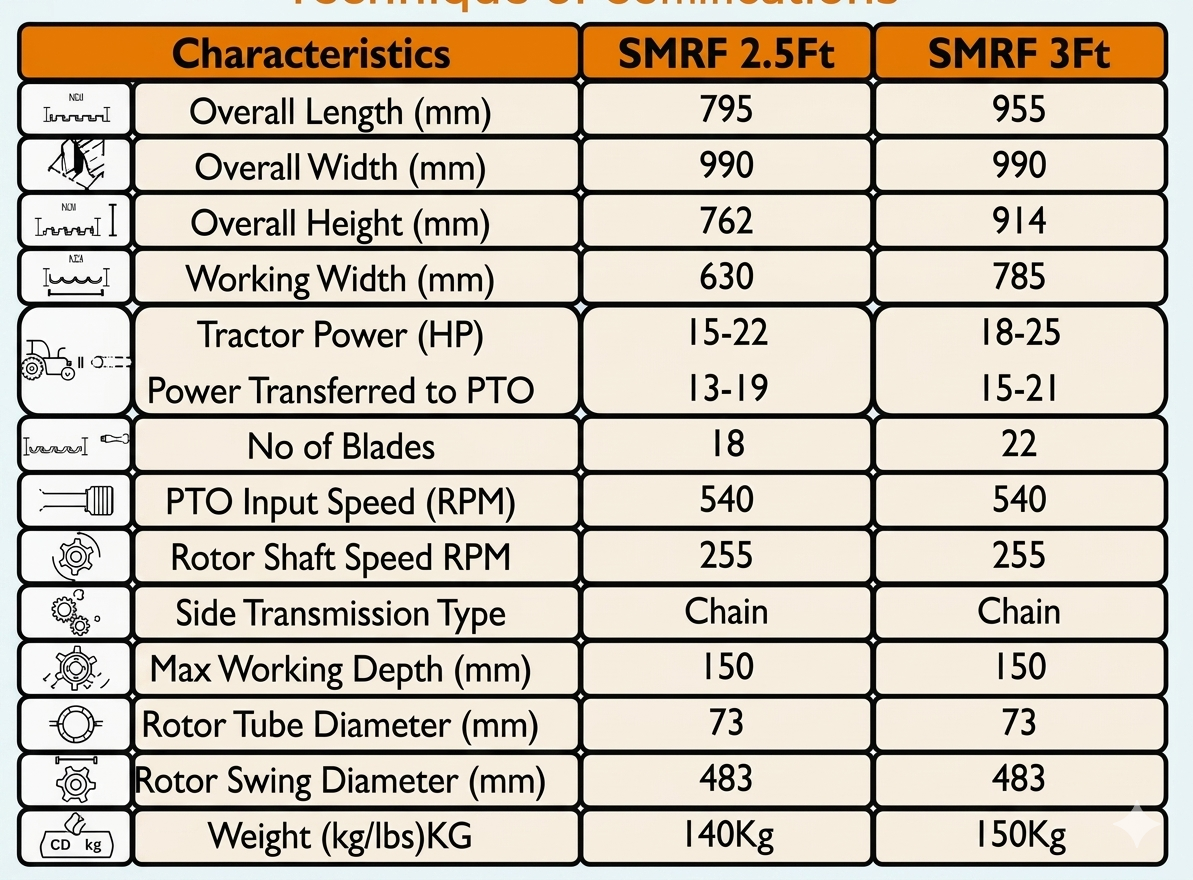

Gearbox: Single Speed Gearbox.

Blades: ""J"" Type Blades (18 blades for 2.5Ft; 22 blades for 3Ft).

Transmission: Side transmission via Chain Drive.

PTO Connection: PTO Shaft with Shear Bolt for safety.

Construction: Includes durable brackets for structural integrity.

RPM Input: PTO input speed of 540 RPM.

Rotor Specifications: Rotor Shaft Speed of 255 RPM, 73 mm Rotor Tube Diameter, and 483 mm Rotor Swing Diameter.
