Orchard Series
SRIMAHAN

Orchard Series

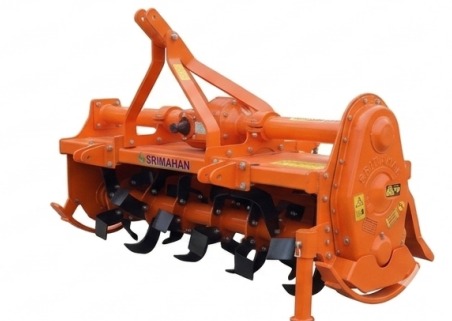

The Orchard Series is a heavy-duty agricultural rotavator available in two models: Orchard 24 and Orchard 28. It is designed for medium-range tractors (25-38 HP) and features a gear-driven transmission system. The machine is built with specialized components like heavy depth skids and durable chain covers to handle demanding tilling tasks in orchard environments.

Adjustable Performance: The multi-speed gearbox and dual RPM input (540/1000) allow for versatile operation based on soil conditions.
Enhanced Stability: Heavy depth skids ensure consistent working depth and machine stability.
High Component Protection: Durable chain covers protect the internal drive system from debris and wear.
Optimized for Orchard Tractors: Specifically designed for tractors in the 25-35 HP and 28-38 HP range.
Gearbox: Multi Speed Gearbox.
Blades: ""L"" Type Blades with Curved/Square standard tine construction.
Transmission: Gear transmission type (Gear Drive option).
RPM Input: 540 / 1000.
Safety: Driveline safety device with a Shear Bolt.
Protection: Includes Durable Chain Covers and Heavy Depth Skids.
Rotor Build: 73/2.9 mm/inch Rotor Tube Diameter and 412/16.2 mm/inch Rotor Swing Diameter.

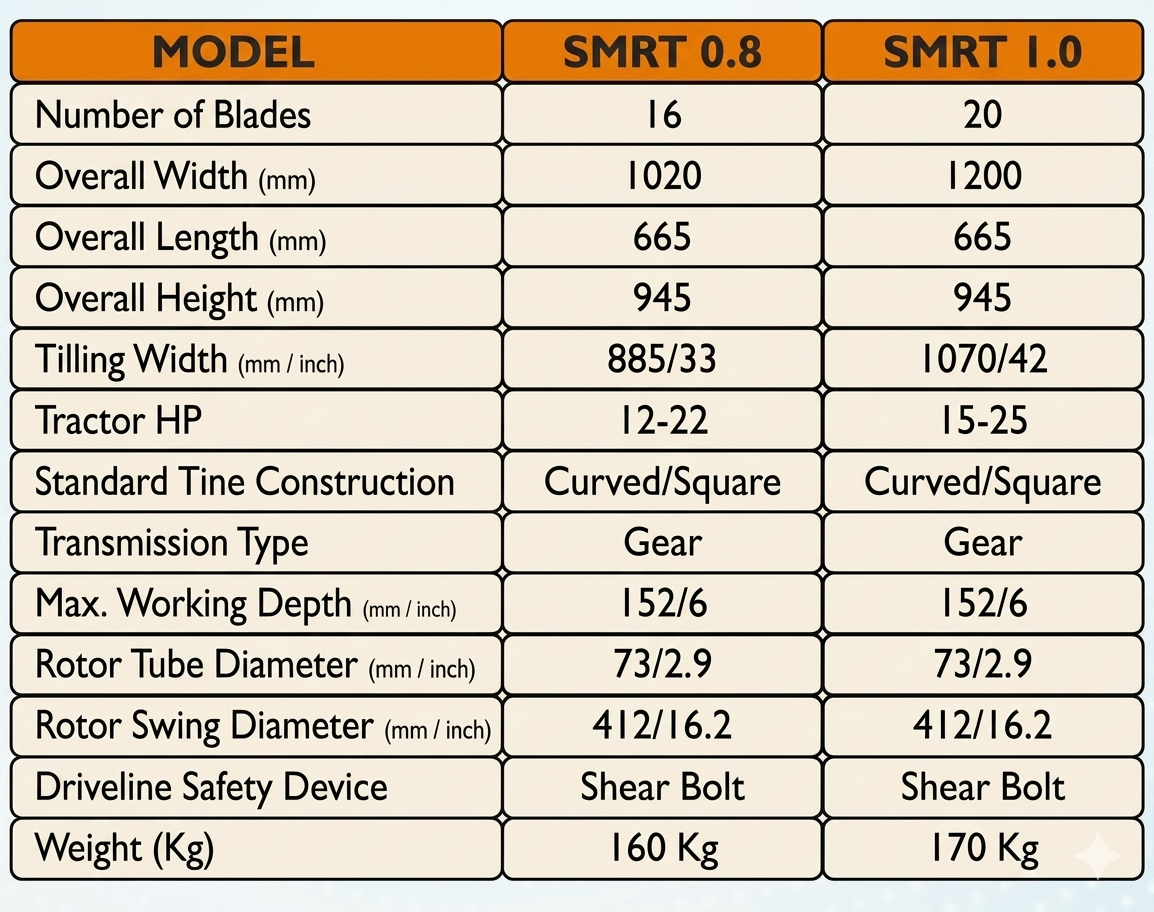

Technical Specifications

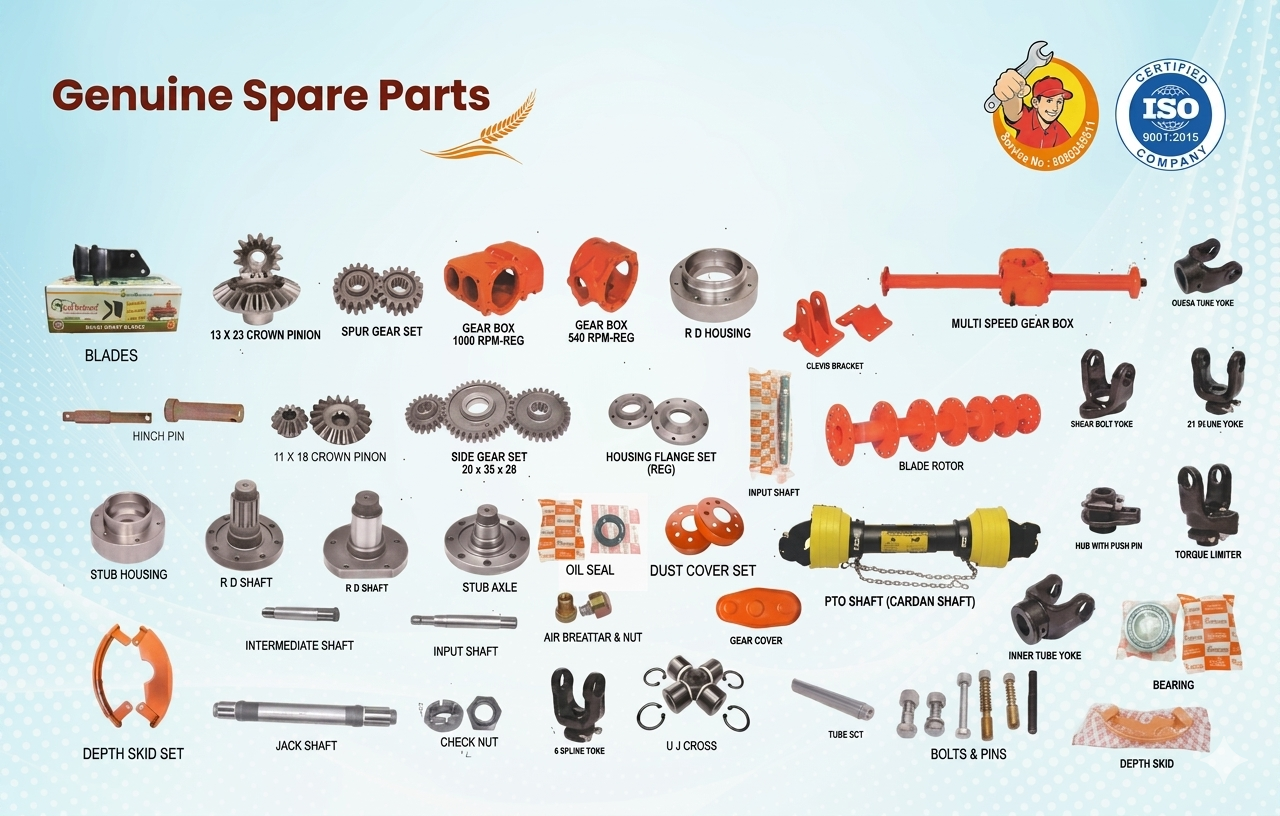

Spare Parts Diagram
